| Encoder : Increment type |
| Image |
 |
 |
 |
 |
 |
| Model |
MES-3 |
MES-6 |
MES(H)-9 |
MES(H)-12 |
MES(H)-17 |
| Demension |
φ5x9.6 |
φ7.5x10.5 |
φ13x20 |
φ20x20 |
φ20x15 |
| Resolution |
64 to 1024 |
100 to 500 |
100 to 16,000 |
100 to 32,000 |
100 to 500 |
| Download |
 |
|
|
|
|
| Image |
 |
 |
 |
 |
 |
| Model |
MES(H/D)-20 |
MEH-30T |
MES(H)-30 |
MES-40 |
MES(H)-50 |
| Demension |
φ32x22 |
φ44x18 |
φ44x22 |
φ56x40 |
φ65x30 |
| Resolution |
40 to 57,600 |
10,000 to 200,000 |
40 to 144,000 |
100 to 80,000 |
500 to 172,800 |
| Download |
|
|
|
|
|
| Image |
|
 |
 |
 |
|
| Model |
MEH-60 |
MEH-85 |
MEH-130 |
MEH-180 |
|
| Demension |
φ74x30 |
φ100x26 |
φ150x50 |
φ200x71 |
|
| Resolution |
180 to 345,600 |
200 to 345,600 |
360 to 518,400 |
36,000 to 576,000 |
|
| Download |
|
|
|
|
|
| Encoder : Modular type |
| Image |
 |
 |
 |
 |
|
| Model |
MGH-12 |
MGH-14 |
MGH-20 |
MGH-30 |
|
| Demension |
φ20x23 |
φ18.9x20 |
φ32x22.5 |
φ44x21 |
|
| Resolution |
1024 to 8192 |
100 to 300 |
40 to 1,200 |
40 to 2,000 |
|
| Download |
|
|
|
|
|
| Encoder : Absolute type |
| Image |
 |
|
 |
 |
 |
| Model |
MAS-10 |
MMS-10 |
MAS(H)-17 |
MAS(H)-20 |
MAS(H)-36 |
| Demension |
φ13x15.5 |
φ13x17.2 |
φ20x21 |
φ32x24 |
φ46x30 |
| Resolution |
256 |
256 to 1024
or SSI |
256 to 1024 |
256 to 4096 |
256 to 16,384 |
| Download |
|
|
|
|
|
| Image |
 |
 |
 |
 |
 |
| Model |
MAS(H)-42 |
MXS-36 |
MXS-42 |
SES-10 |
SES(H)-17 |
| Demension |
φ52x30 |
φ46x55 |
φ65x63.5 |
φ13x10 |
φ20x12.5 |
| Resolution |
256 to 4096 |
128 to 1024 |
128 to 4096 |
100 to 200 |
100 to 360 |
| Download |
|
|
|
|
|
| Encoder : Special Item |
| Image |
 |
 |
 |
|
| Model |
RHE series |
DC siries |
MT series |
|
| Characteristic |
- Roller type encoder.
- Easy measuring.
- Minimum reading 0.1 to 1mm. |
- Small and robust counter.
- Decimal point moving, dividing/multiplying possible. |
- In combination with ME-12PS, ME-20PS or ME-30PS,
division is made into 8 multiple and 16 multiple. |
|
| Download |
|
|
|
|

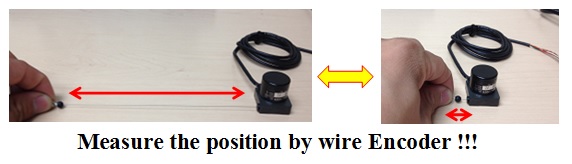

| Encoder : Wire type |
| Image |
 |
 |
 |
 |
 |
| Model |
MLS-12 |
MLS-30 |
MLS-50 |
MLA-17 |
MLA-30 |
| Demension |
23x24x25 |
44x44x35 |
78x132x51 |
23x24x27.4 |
54x46x38.5 |
| Download |
|
|
|
|
|
| Image |
 |
 |
|
|
|
| Model |
MLA-36 |
MLA-50 |
|
|
|
| Demension |
51x59x69 |
90x177x58.5 |
|
|
|
| Download |
|
|
|
|
|
