REMOTE Sensor System

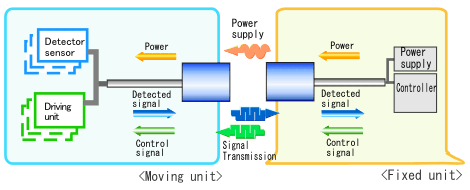

The Remote System supplies power inductively from fixed side to moving side as well as they transmit signals between each part.
Remote system solves the problem of related to the rotation, the movement, the machine according to detaching, and Power supply and Transmission signal on the device.



More detailInfomation: Remote System 		Switch
Switch signal type
Data
Data signal type

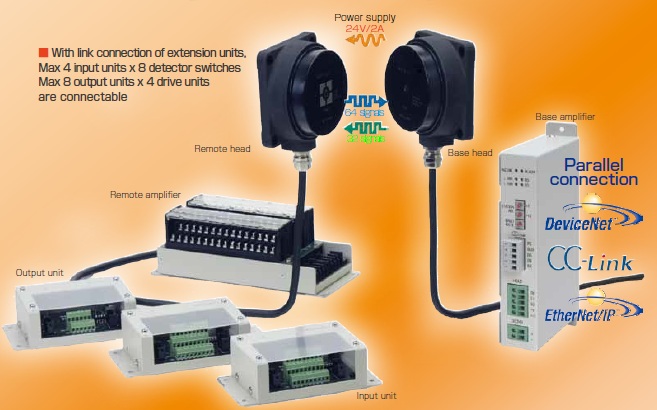

- Switching signal type: Transmit the switching signals interactivly with the power.

Function : Switching signal
Type RHPT8-8010_/
RHPE8-8010_		 RC08T-011_/
RCH08T-211_/
RCH08E-211_/
RC08E-011_		 RL64T-344(5)_/
RCH08T-211_/
RCH08E-211/
RL64E-333_/
RLX08-322_/
RLY04-322_		 RL64T-344(5)_/
RCH08T-211_/
RCH08E-211/
RL64EA-355DN/
RLX08-322_/
RLY04-322_		 RL64T-344(5)_/
RCH08T-211_/
RCH08E-211/
RL64E-366CL_/
RLX08-322_/
RLY04-322_		 RL64T-344(5)_/
RCH08T-211_/
RCH08E-211/
RL64E-366EI_/
RLX08-322_/
RLY04-322_
Sensor
Type
Number 4+4 8+8 64+32 64+32 64+32 64+32
Input/
Output		 ON/OFF
(Parallel)		 ON/OFF
(Parallel)		 ON/OFF
(Parallel)		 DeviceNet CC-LINK EthernetIP
Distance 10mm 9mm 9mm 9mm 9mm 9mm
Size 90X90 90X90 90X90 90X90 90X90 90X90
Power 24V300mA 24V2A 24V2A 24V2A 24V2A 24V2A
Download

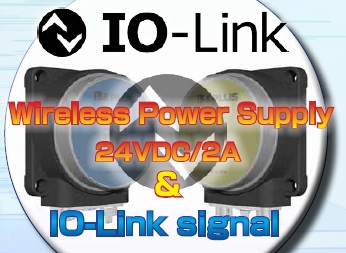

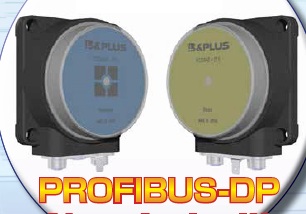

- Data signal type: Transmit the Data signals with the power.

Function : Data signal
Type RCD11T_/
RCD11E_		 RCD22T-211_/
RCD22E-211_		 RCD33T-211_/
RCD33E-211_		 RCD44T-211_/
RCD44E-211_		 RCD55T-211_/
RCD55E-211_
Transfer
Signal
Speed 38.4Kbps 10Mbps 500Kbps 1.5Mbps 38.4Kbps
Input/
Output		 RS-232C CC-LINK DeviceNet Profibus IO-LINK
Distance 6mm 5mm 5mm 5mm 5mm
Size 90x90 97x90 97x90 97x90 97x90
Power 24V1A 24V2A 24V2A 24V2A 24V2A
Download
