Wireless power supply and charging system

—Mobile device power supply and lead battery charging—

What is a remote power supply?

What is a remote power supply?

A remote power supply is a system for remotely providing power. Remote power supplies include those that wirelessly provide power to various loads (such as motors) and those that wirelessly charge lead batteries. Those made specifically for transmitting power can be used in many ways, including as a power source for a Power Moller or a motor. Other uses include recharging the batteries of robots and automated guided vehicles.

Dedicated power supply specifications

Remote power supplies - Dedicated power supply specifications
  • Dedicated remote power supply systems

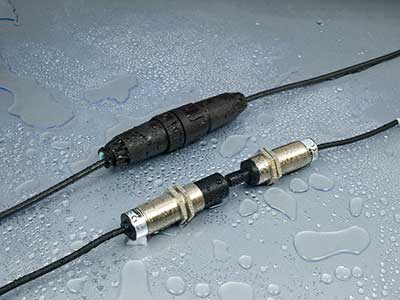

  • The power supply line can be attached and removed even in wet conditions.

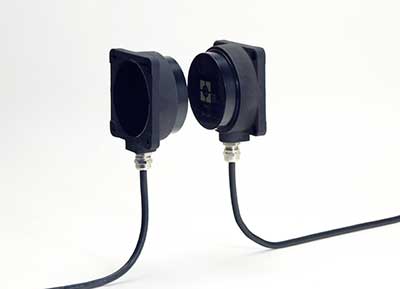

Remote power supplies - RVTI-030-21/RVEI-030-2 Remote power supplies - RVT-422-201/RVE-422-2 Remote power supplies - RVT-211-22/RVE-211-2 Remote power supplies - RVT 210 102/RVE-211-2 Remote power supplies - RVTA-411-25/RVEA-411-3
Type RVTI-030-21
RVEI-030-2
RVT-422-201
RVE-422-2
RVT-211-22
RVE-211-2
RVT-210-102
RVE-211-2

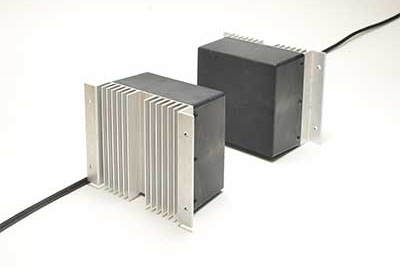

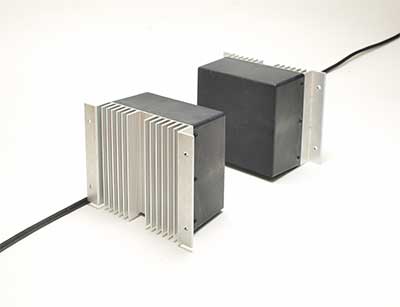

RVTA-411-25*
RVEA-411-3*
Output Power supply Power supply Power supply Power supply Power supply
Operation distance 3 mm 9 mm 10 mm 10mm
Size M30 45 x 45 90 x 90 80 x 80 200x150
Power 24 V/1 A 24 V/1 A 24 V/2 A 12 V/2.5 A 24 V/5 A
Spec sheet Download Download Download Download Download

Notes:
Some jurisdictions may have high-frequency use application requirements for some products.
* Asterisked products are designed for AC 100 volts. Before use, check the voltage use environment.

Dedicated power charging specifications

Remote power supplies - Dedicated power charging specifications
  • Remote wireless charging system
  • Excellent for charging automated guided vehicle batteries and much more.

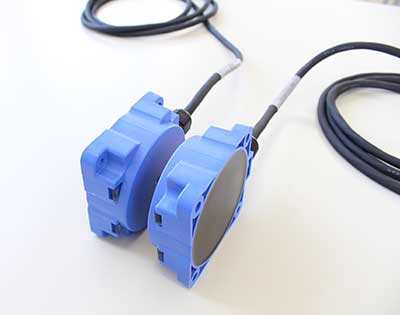

Remote power supplies - RVT 210 502/RVE-211-2

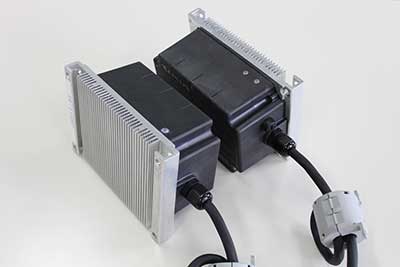

Remote power supplies - RVT 433 404/RVE 433 2

Remote power supplies - RCS240PH
Type RVT-233-401LI
RVE-233-2
RVT-210-502
RVE-211-2
12V charger:RVT-433-508
24V charger:RVT-433-404
RVE-433-2
RVTA-411-44*
RVEA-411-3*
Output Charging Charging Charging Charging
Operation distance 0-20 mm 4-10 mm 0-10 mm 0-10 mm
Size 80 x 80 mm 80 x 80 mm 160 x 110 mm 158 x 150 mm
Power 28.9V/1A 14.4V/2A 12V charger:14.8V/8.5A
24V charger:29V/4.3A
28V/4A
Spec sheet Download Download [12V charger]Download[24V charger]Download Download

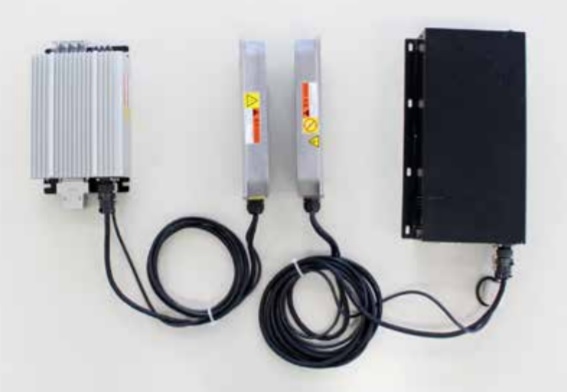

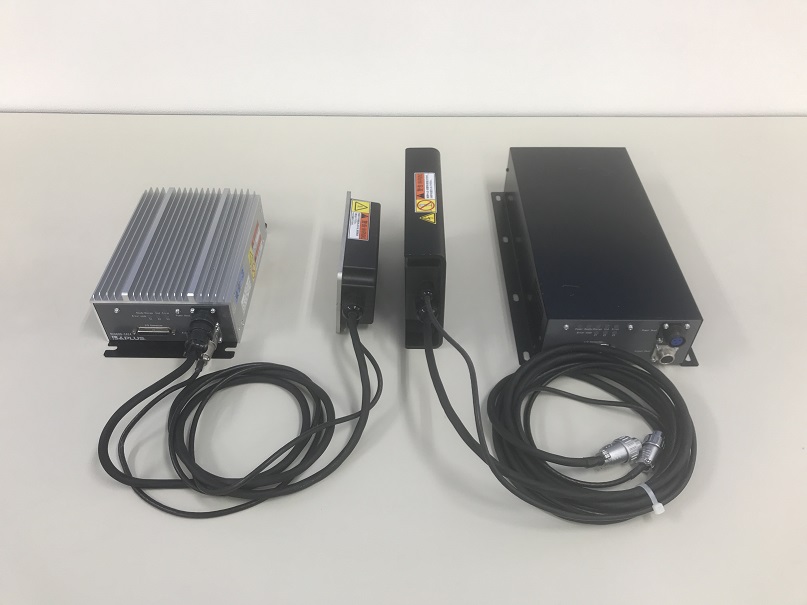

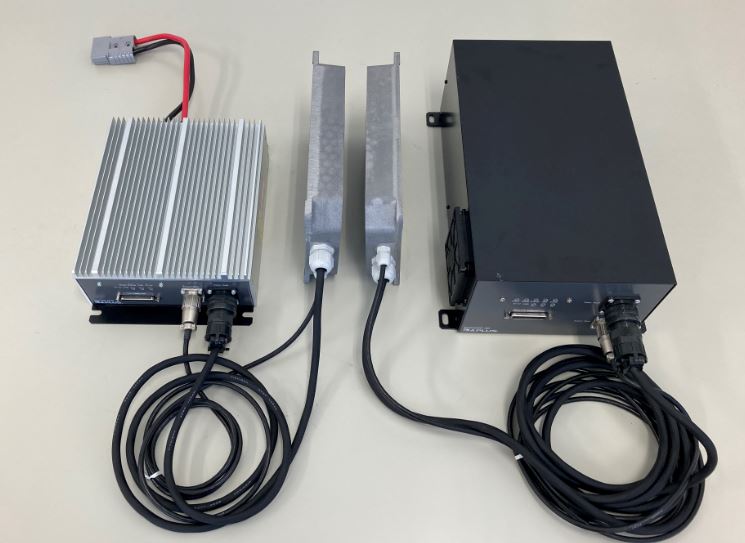

Remote power supplies - RCS600 Remote power supplies - RCS6000-L Remote power supplies - RCS1000 Remote power supplies - RCS2000
Type RCS210-PB24
RCS240PH
RCS240AH
RCS240-AC1
12V:RCS600-CA12
24V:RCS600-CA24
48V:RCS600-CA48
RCS600CH
RCS600AH
RCS600-AC
12V:RCS600-CA12
24V:RCS600-CA24
48V:RCS600-CA48
RCS600CH-L
RCS600AH-L
RCS600-AC
24V:RCS1000-CA24
48V:RCS1000-CA48
RCS1000CH
RCS1000AH
RCS1000-AC
RCS2000-CA24
RCS2000CH
RCS2000AH
RCS2000-AC
Output Charging Charging Charging Charging Charging
Operation distance 0-10mm 0-20mm 20-40mm 0-15mm 0-45mm
Size Head:140 x 100 mm Head CH:170x100mm
Head AH:254x100mm
Head CH:250x150mm
Head AH:250x150mm
Head CH:170x100mm
Head AH:250x150mm
Head CH:250x150mm
Head AH:250x150mm
Power 30V/7A 12V charger:15V/34A
24V charger:30V/20A
48V charger:60V/10A
12V charger:15V/34A
24V charger:30V/20A
48V charger:60V/10A
24V charger:30V/34A
48V charger:60V/17A
24V charger:30V/67A
Spec sheet Download Download Download Download Download

Notes:
Some jurisdictions may have high-frequency use application requirements for some products.
* Asterisked products are designed for AC 100 volts. Before use, check the voltage use environment.
