New option “Remote Checker” is now available!
A new option, “Remote Checker,” is now available for connecting remote sensors and easy ID bit systems (5/8/10-bit systems) to check operation immediately at hand!

Normally, this product needs to be connected to a PLC or control panel and supplied with 24V voltage, but this can be a problem in the following cases.

The PLC or control panel is not available, and the operation of the wireless power supply product cannot be checked.
We want to check the operation at various locations, such as on a desk or in a work area, instead of at a facility.
Remote Checker” can be used in such cases!

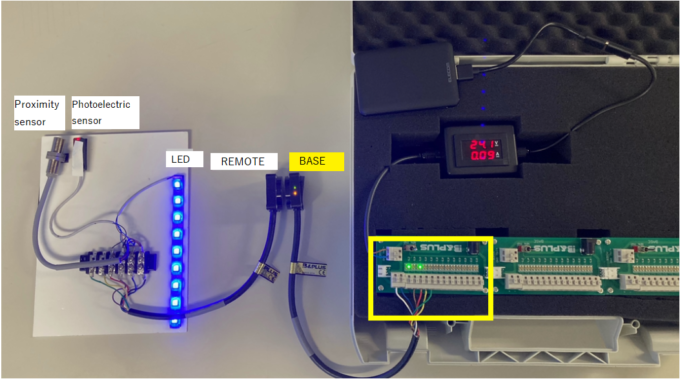

Remote sensor operation can be easily checked even if a 24V power supply is not available!

The power supply is powered by a mobile battery, and the wiring of the base unit is simply plugged into the LED display unit for easy connection!

When using the remote unit for operation check, please use the base unit in good condition.

Easy operation check with LED display!

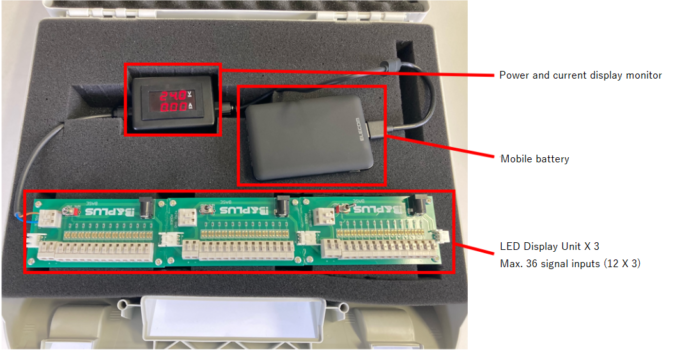

Check the operation of multiple sensors at once by connecting up to 36 signals!

The base unit is connected to the LED display unit, and operation can be easily checked on the LED display!

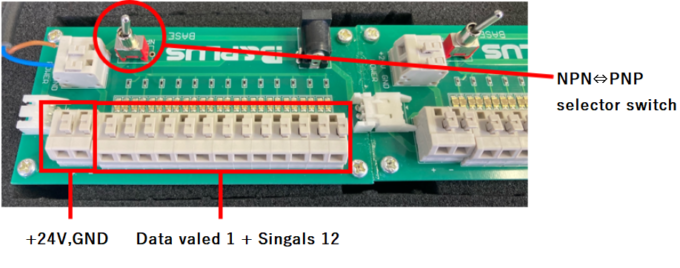

Three units are mounted in series, 12 points x 3 units for a maximum of 36 points! NPN/PNP can be easily switched with a lever!

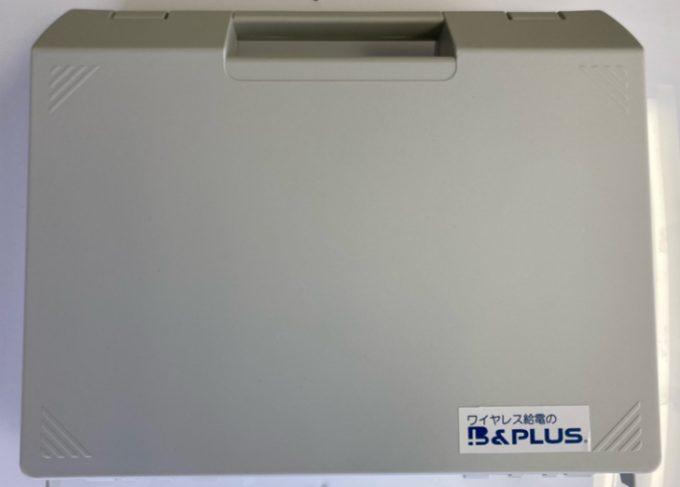

Packaged in an easy-to-carry case with a handle! Easy to check operation anywhere!

Since it is powered by a mobile battery, it does not choose where to check operation!
