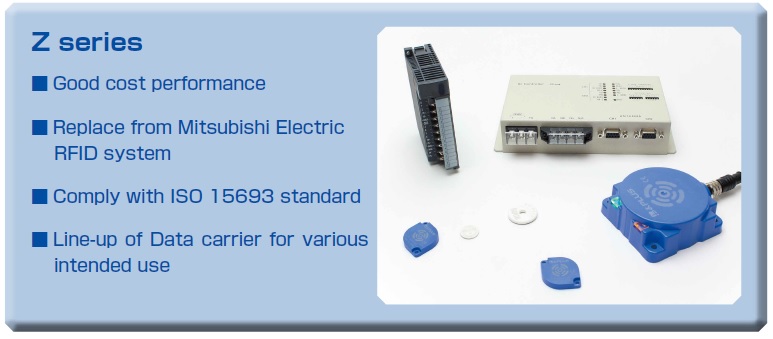

Z serie (Low cost tag)
| Data Carrier (ISO15693 standard: 13.56MHz) | ||||||
|---|---|---|---|---|---|---|
| Image |  |
 |
 |
 |
||
| Size | 30x30x6 | φ16x0.9 | φ26x3.4 | φ50x8.3 | ||
| Material | PBT | Glass fiber cloth | Almina ceramic | PA6 | ||
| Type | Z1-AA04-02K | Z1-FA01-128 | Z1-EC02-128 | Z1-B011-128 | ||
| Memory Type | 2Kbyte/FRAM | 112byte/EEPROM | 112byte/EEPROM | 112byte/EEPROM | ||
| Operation distance | Max:30mm | Max:35mm | Max:34mm | Max:45mm | ||
| Read/Write Head | Processor | |||||
|---|---|---|---|---|---|---|
| Image |  |
Image |  |
 |
||
| Type | Z3-A010-CN | Type | Z4-Q001 Z4-Q002 |
Z4-C001 Z4-C002 |
||
| Size | 80x100x30 | Number of head |
2CH | 2CH | ||
| Applicable Data carrier | ISO15693 Standard |
Host Device |  |
 |
||
| Accessories | ||||||
|---|---|---|---|---|---|---|
| Image |  |
 |
 |
 |
||
| Figure | M12 straight | M12 angle | M12 straight | M12 angle | ||
| Type Code | Z7-A001-PU_ | Z7-A002-PU_ | Z7-A005-PU_ | Z7-A006-PU_ | ||
| Applicable Processor | Z4-Q001 Z4-Q002 |
Z4-Q001 Z4-Q002 |
Z4-C001 Z4-C002 |
Z4-C001 Z4-C002 |
||
